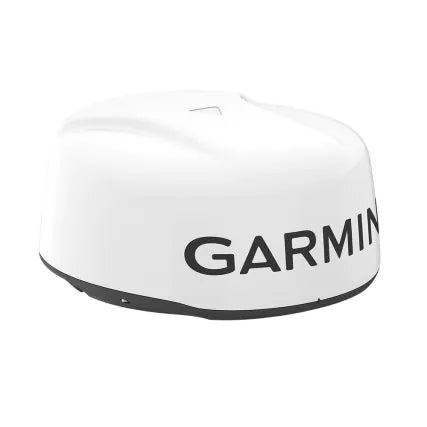

GMR™ 18 HD3 Radome (Radar)
PART NUMBER 010-02843-00
General |
|
| Dimension | 20" diameter, 9.8" high (508 mm diameter, 248 mm high) |
|---|---|
| Weight |
7.0 kg |
| Water rating | IPX7 |
| Antenna Length | 17" (43 cm) |
| Rotation speed (RPM) | 24 rpm |
| Beam width | 5.2° horizontal, 25° vertical |
| Maximum range | 36 nm |
| Minimum range | 20 meters |
| Radar type | Radome |
Electrical Features |
|
| Power Input | 11-32 V DC |
|---|---|
| Power Consumption (standby) | 15 W |
| Typical power consumption, transmitting (normal mode) | 40 W |
| Transmit power | 4 kW |
Radar Features |
|
| Overlay | |
|---|---|
| Dual radar support | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
